HTRRUu210.021#27/V2

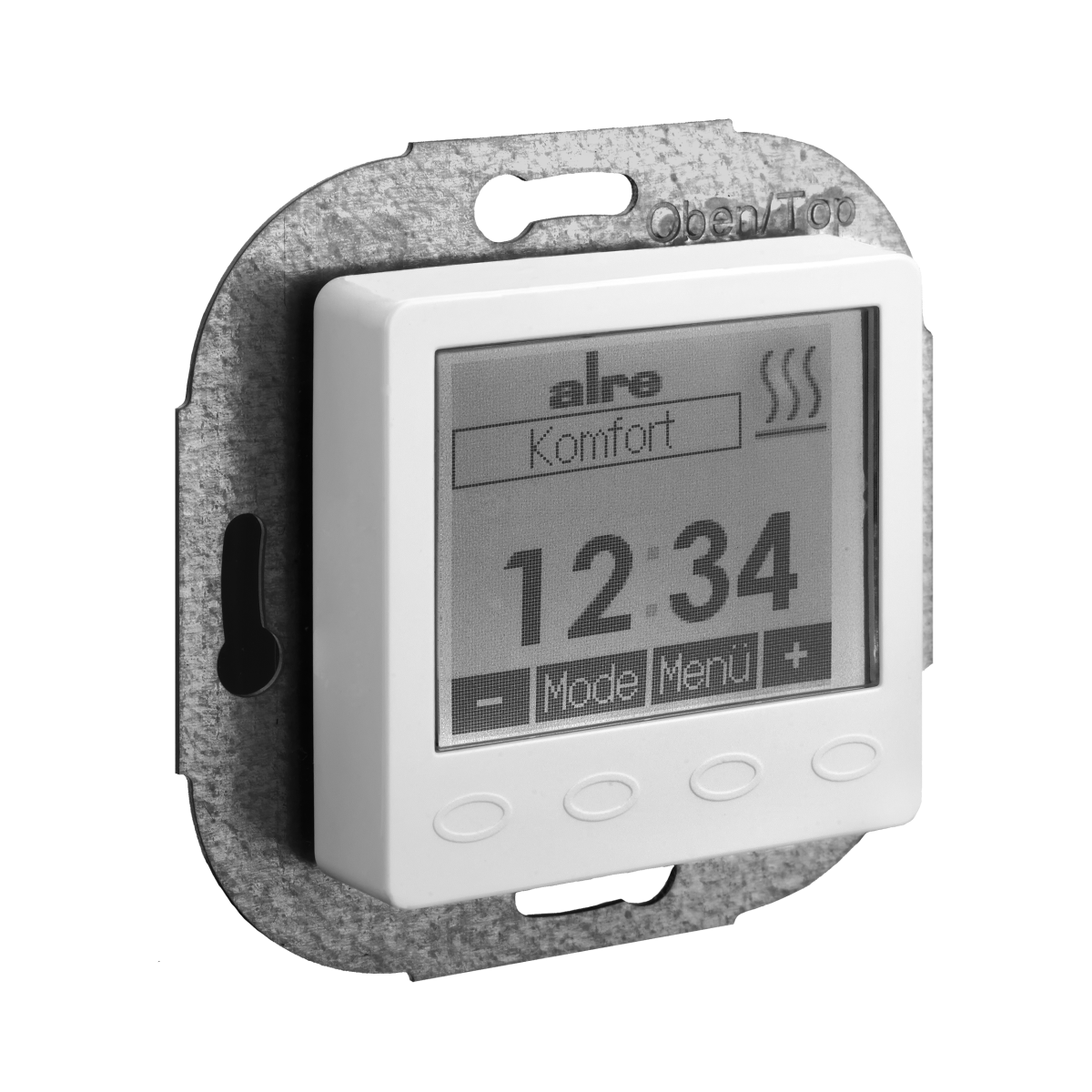

Room/floor temperature controller with clock, flush-mounted, cover 50x50mm, traffic/studio white, glossy
Universal flush-mounted temperature controller for time-dependent individual room or floor temperature control for electric and hot water heating systems (normally closed valve actuators). The device can be used as a room thermostat (also with optional external room sensor), with optional remote sensor also as a room thermostat with floor monitoring or as a floor thermostat. This clock thermostat has a weekly timer with individually adjustable programs (factory set to “normal” daily routines). Simple handling thanks to intuitive operation, cost optimization through time-controlled regulation to the desired temperatures. Illuminated, graphics-capable display. Convenient installation thanks to free wiring of the plug-in screw terminals.
Art.-Nr.: UA060003
Technical data
| Actual temperature display | Yes |
| Adaptive heating time start | Yes |
| Ambient temperature | 0 … 35 °C |
| Bearing temperature | –20 … 70 °C |
| Clock type | day/week |
| Clock version | digital |
| Colour | traffic white |
| Control behaviour | 2-point or PI-PWM |
| Control range | 5 … 42 °C |
| Design | Berlin UP |
| Dimensions (W x H x D) | 71 mm x 71 mm x 46 mm |
| Display | Yes |
| Display type | illuminated, graphic display |
| Electric connection | screwed plug-in terminals |
| Energy efficiency class | I or IV |
| External setting | Yes |
| Heating control function | Yes |
| Housing material | plastic ABS, PC, PMMA |
| Max. air humidity (non-condensing) | 95 % r.H. |
| Max. switching current | 10 (2) A |
| Max. switching voltage | 230 VAC, 50 Hz |
| Medium | Air |
| Min. switching voltage | 230 VAC, 50 Hz |
| Montage/Befestigung | flush mounting (deep socket recommended) |
| Number of control ranges | 1 |
| Number of outputs | 1 |
| Number of outputs, heating | 1 |
| Number of switching programs | 7 |
| Operating voltage | 230 VAC, 50 Hz |
| Operation | touch-sensitive buttons |
| Output signal | switching |
| Party function | Yes |
| Potential free switching contact | No |
| Power reserve | 5 Days |
| Protection class | II, following appropriate mounting |
| RAL colour number (similar) | 9016 |
| Safety and EMC | in accordance with DIN EN 60730 |
| Sensor element | NTC internal, optional NTC external |
| Sensor external | No |
| Shortest switching time | 15 min |
| Surface finish | gloss |
| Switching contact | normally open contact |
| Switching difference, can be adjusted | No |
| Switching differential | 0,5 … 1 K |
| Switching element | relay |
| Switching power | 2300 W |
| Temperature controller version | room therm. and/or underfl. temp. contr. |
| Test mark approval | CE, VDE |
| Valve protection function | Yes |
