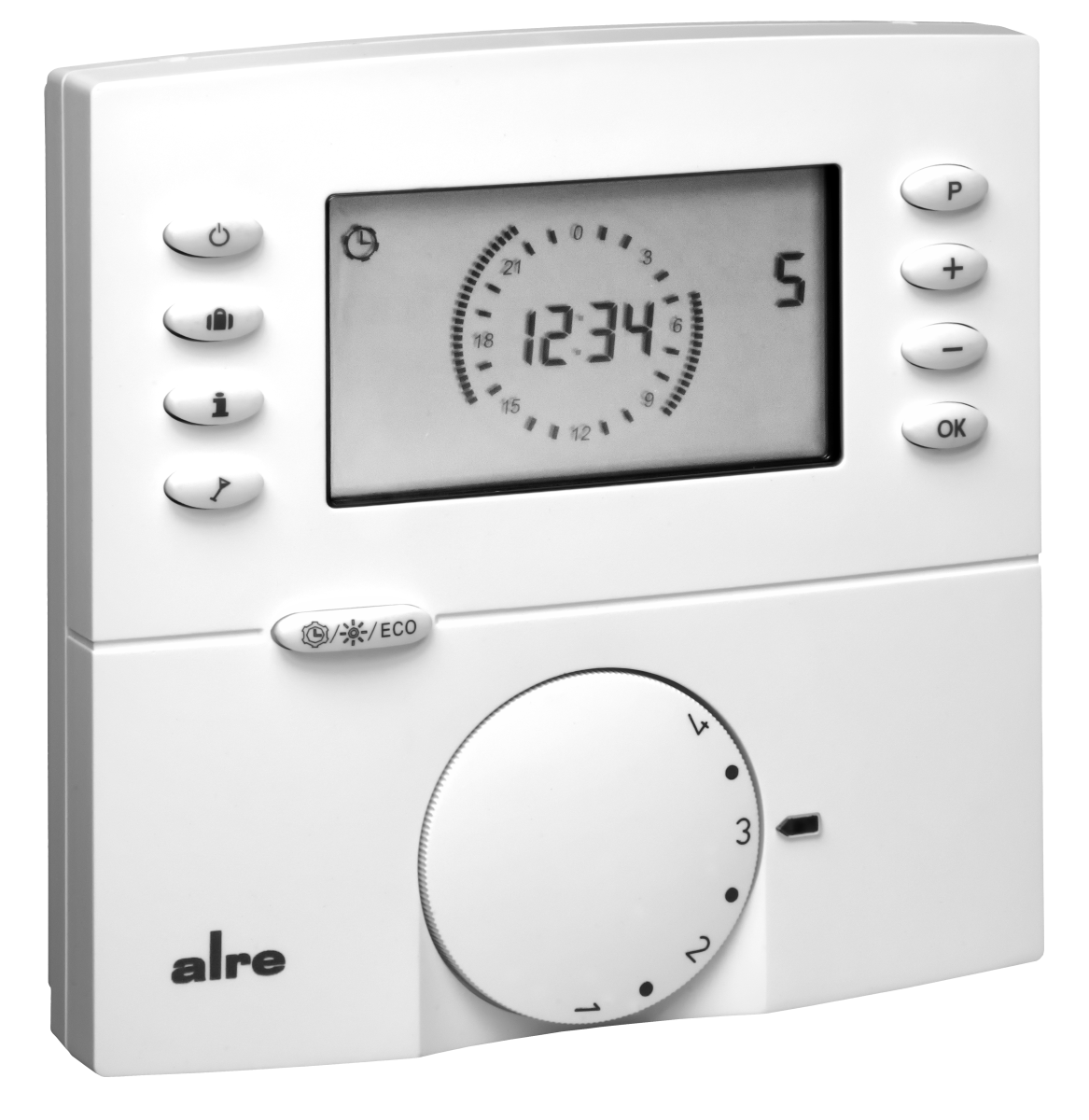

Floor temperature controller with clock, surface-mounted, remote sensor NTC2K, backlighting

HTRRBu110.021

Floor temperature controller with clock, surface-mounted, remote sensor NTC2K, backlighting

Electronic floor temperature controller for time-dependent control of temperatures in closed rooms. Suitable for floor, edge zone, bathroom, ceiling, tiled stove, marble and wall heating or temperature control systems up to 3000 W. Can be used as a master (pilot controller) to reduce the temperature of other controllers. Controllers of the FETR, FTR and RTBSB series are suitable for this purpose as slaves (satellite controllers). Simple operation with direct selection buttons. In the event of a sensor break or sensor short circuit, the heating is activated with a duty cycle of 30 % to prevent cooling or frost damage in the room. Temperatures below -20 °C are also evaluated as sensor breakage and the emergency run function is triggered. It can also be mounted on a flush-mounted box using an adapter plate.
  • Art.-Nr.: MA600400

    Technical data

    Actual temperature display Yes
    Adaptive heating time start Yes
    Ambient temperature 0 … 30 °C
    Bearing temperature –20 … 70 °C
    Clock type day/week
    Clock version digital
    Colour pure white
    Control behaviour 2-point
    Control range 10 … 42 °C
    Design Berlin 3000
    Dimensions (W x H x D) 110 mm x 110,7 mm x 26 mm
    Display Yes
    Display type LCD, illuminated
    ECO output (reduction) 230 VAC, 50 Hz
    Electric connection screw terminals
    Energy efficiency class I
    External setting Yes
    Heating control function Yes
    Housing material plastic ABS
    Max. air humidity (non-condensing) 95 % r.H.
    Max. switching current 13 (2) A, 100 mA
    Max. switching voltage 230 VAC, 50 Hz
    Mechanical range reduction Yes
    Medium Air
    Min. switching voltage 230 VAC, 50 Hz
    Montage/Befestigung surface mounting
    Number of control ranges 1
    Number of outputs 2
    Number of outputs, heating 1
    Number of switching programs 7
    Operating voltage 230 VAC, 50 Hz
    Operation rotary knob and buttons
    Output signal switching
    Party function Yes
    Potential free switching contact No
    Power reserve 7 Days
    Protection class II, following appropriate mounting
    RAL colour number (similar) 9010
    Safety and EMC in accordance with DIN EN 60730
    Scale Index number scale 1…4
    Schalter Heizen/Kühlen No
    Sensor element NTC external
    Sensor external Yes
    Shortest switching time 15 min
    Surface finish matt
    Switching contact normally open contact
    Switching difference, can be adjusted No
    Switching differential 1 K (delta T max. 4 K/h)
    Switching element relay
    Switching power 3000 W (230 VAC) / 23 W (230 VAC)
    Temperature controller version underfloor temperature controller
    Type of wiring other
    Valve protection function Yes
    Weather-dependent control No
    With receiver No
