HTRRB-011.410

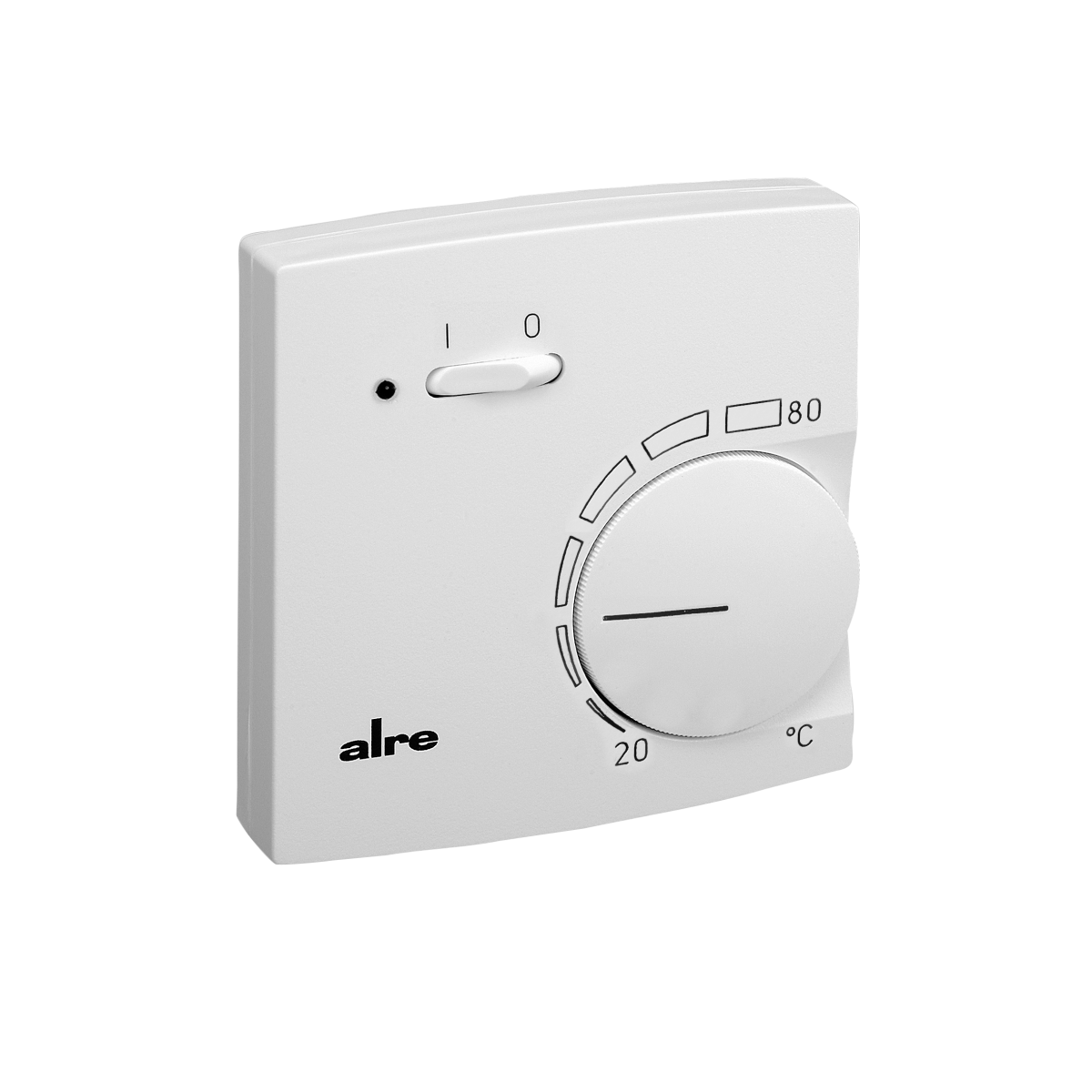

Surface temperature controller with remote sensor, surface-mounted, 20-80°C
For temperature control (e.g. electric heating) for floor, edge zone, bathroom, ceiling, tiled stove, marble and wall heating or temperature control systems. Electronic tiled stove surface temperature controller for electric heaters up to 3000 W. The setting range can be changed using the range restriction located under the setting knob. Remote sensor HF-5 / 4-K3 (4 m) included in the scope of delivery. The heating is switched off in the event of a sensor break or short circuit.
Art.-Nr.: DA400100
Technical data
| Actual temperature display | No |
| Additional heating switch | No |
| Ambient temperature | 0 … 30 °C |
| Assembly | complete device |
| Bearing temperature | –20 … 70 °C |
| Colour | pure white |
| Control behaviour | 2-point |
| Control range | 20 … 80 °C |
| Cooling control function | No |
| Design | Berlin 2000 |
| Dimensions (W x H x D) | 78,3 mm x 83,4 mm x 25,5 mm |
| Display | No |
| ECO function (reduction) | No |
| Electric connection | screw terminals |
| Electronic control | Yes |
| Energy efficiency class | I |
| External setting | Yes |
| Heating control function | Yes |
| Housing material | plastic ABS |
| Max. air humidity (non-condensing) | 95 % r.H. |
| Max. switching current | 13 (2) A |
| Max. switching voltage | 230 VAC, 50 Hz |
| Mechanical range reduction | Yes |
| Medium | Air |
| Min. switching voltage | 230 VAC, 50 Hz |
| Montage/Befestigung | surface mounting |
| Number of control ranges | 1 |
| Number of outputs | 1 |
| Number of outputs, heating | 1 |
| Operating voltage | 230 VAC, 50 Hz |
| Operation | rotary knob and switches |
| Output signal | switching |
| Potential free switching contact | No |
| Protection class | II, following appropriate mounting |
| RAL colour number (similar) | 9010 |
| Safety and EMC | in accordance with DIN EN 60730 |
| Scale | Degree Celsius |
| Schalter Ein/Aus | Yes |
| Schalter Heizen/Kühlen | No |
| Sensor element | NTC external |
| Sensor external | Yes |
| Surface finish | matt |
| Switch/lamp night-time reduction | No |
| Switching contact | normally open contact |
| Switching difference, can be adjusted | No |
| Switching differential | 1 K (delta T max. 4 K/h) |
| Switching element | relay |
| Switching power | 3000 W |
| Temperature controller version | surface temperature controller |
| Type of wiring | three-/four-wire |
| With receiver | No |
