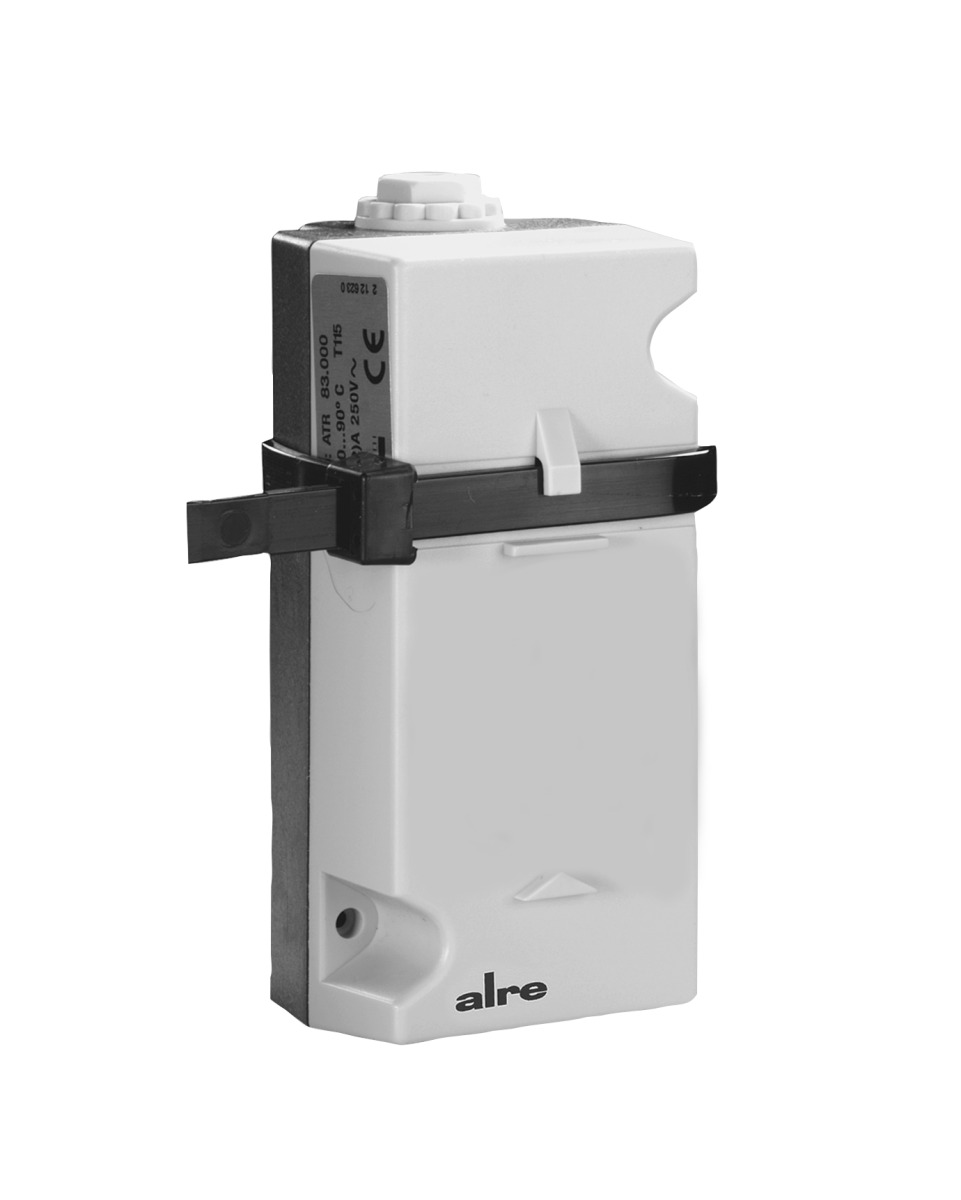

ATR 83.101
Contact temperature controller, 0-60°C, indoor setting, IP20
Contact thermostat for controlling or monitoring temperatures on heating registers, pipes or containers, e.g. temperature-dependent pump control or control of motor valves.
Art.-Nr.: C1810495
Technical data
| Ambient temperature | 0 … 80 °C |
| Assembly | temperature controller, cable ties |
| Bearing temperature | 0 … 80 °C |
| Colour | grey |
| Contact interlocking | No |
| Control range | 0 … 60 °C |
| Cooling control function | Yes |
| Dimensions (W x H x D) | 52 mm x 110 mm x 52 mm |
| Electric connection | screw terminals |
| Electronic control | No |
| External setting | No |
| Function type (systems engineering) | TW |
| Heating control function | Yes |
| Max. air humidity (non-condensing) | 95 % r.H. |
| Max. Sensor temperature | 80 °C |
| Max. switching current | 16 (2) A |
| Max. switching voltage | 230 VAC, 50 Hz |
| Min. switching current | 150 mA |
| Min. switching voltage | 24 VAC, 50 Hz |
| Montage/Befestigung | wall/pipe mounting |
| Number of control ranges | 1 |
| Number of outputs | 2 |
| Operation | internal setpoint adjuster |
| Output signal | switching |
| Potential free switching contact | Yes |
| Protection class | I |
| Safety and EMC | in accordance with DIN EN 60730 |
| Scale | Degree Celsius |
| Sensor element | capillary tube |
| Surface finish | matt |
| Switching contact | two-way contact |
| Switching difference, can be adjusted | No |
| Switching differential | Heating/cooling: 4 K |
| Switching element | microswitch |
| Switching power | 3680 W |
| Temperature controller version | surface temperature controller |
| Thermal feedback | Yes |
| With explosion protection | No |
