KTRRUs410.B86#55

Raumtemperaturregler NOVA mit Display, UP, mit Abdeckung 55x55mm, reinweiß, glänzend


Installations-Tutorial

SKU: UA130000 Categories: , , , , ,
Add to wishlist
Compare

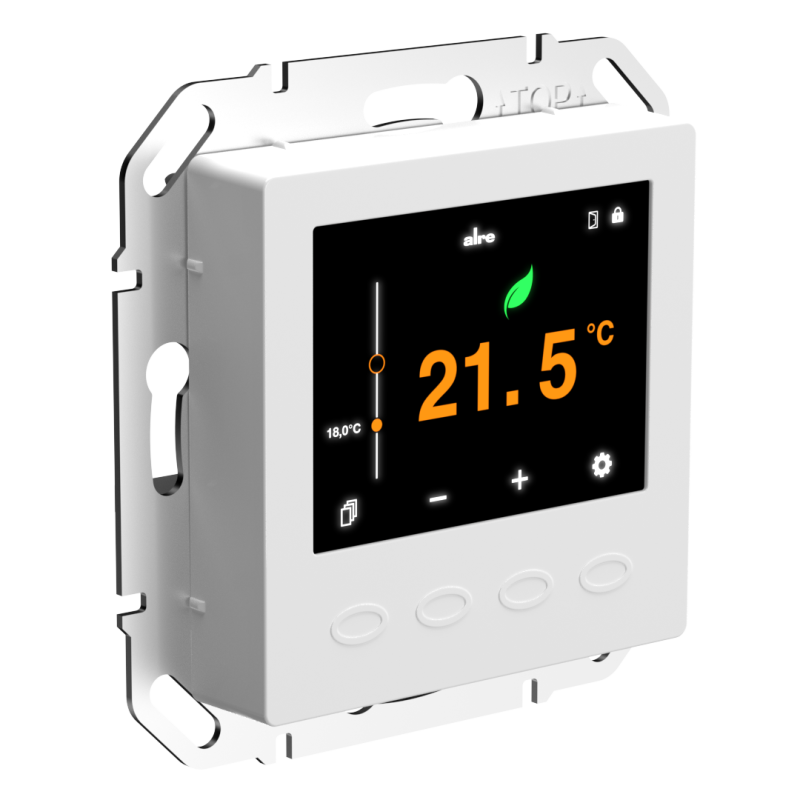

KTRRUs410.B86#55 — produktbild
KTRRUs410.B86#55 — gif_360

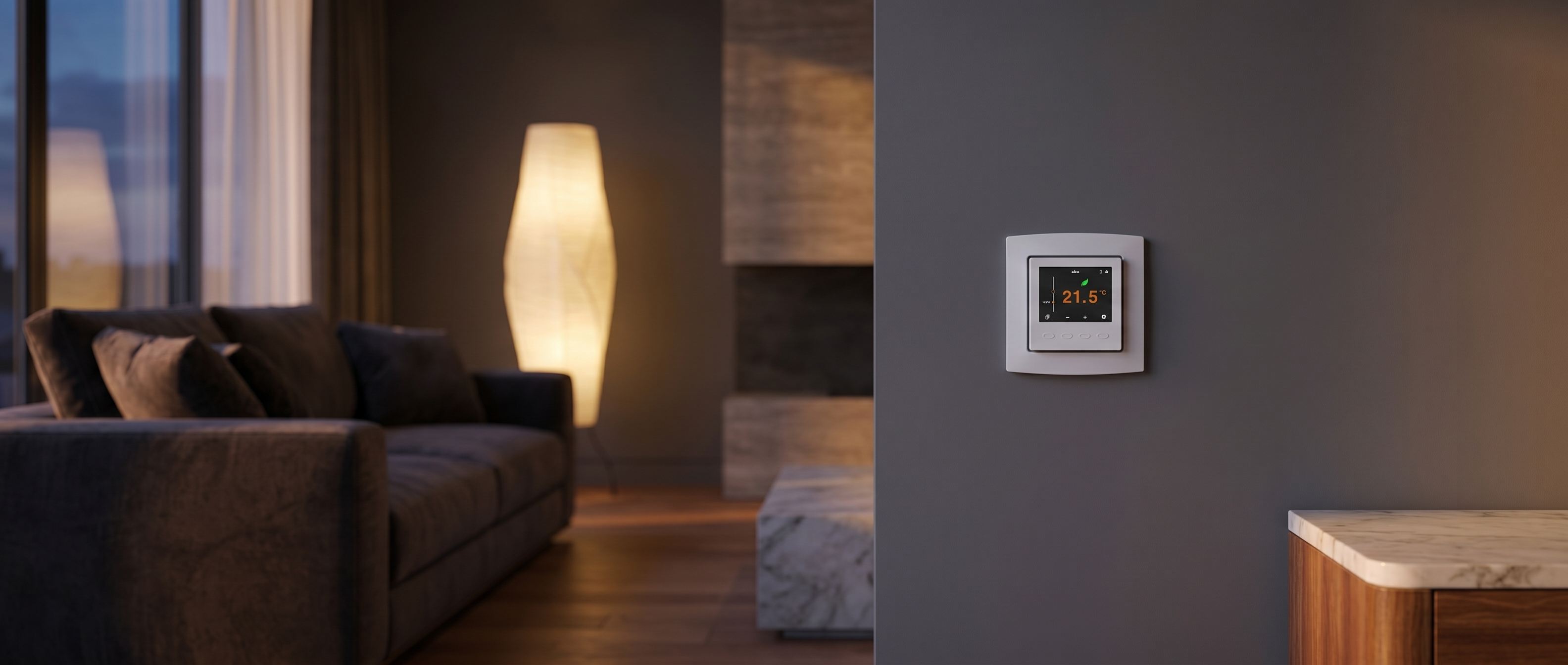

KTRRUs410.B86#55 — milieubild

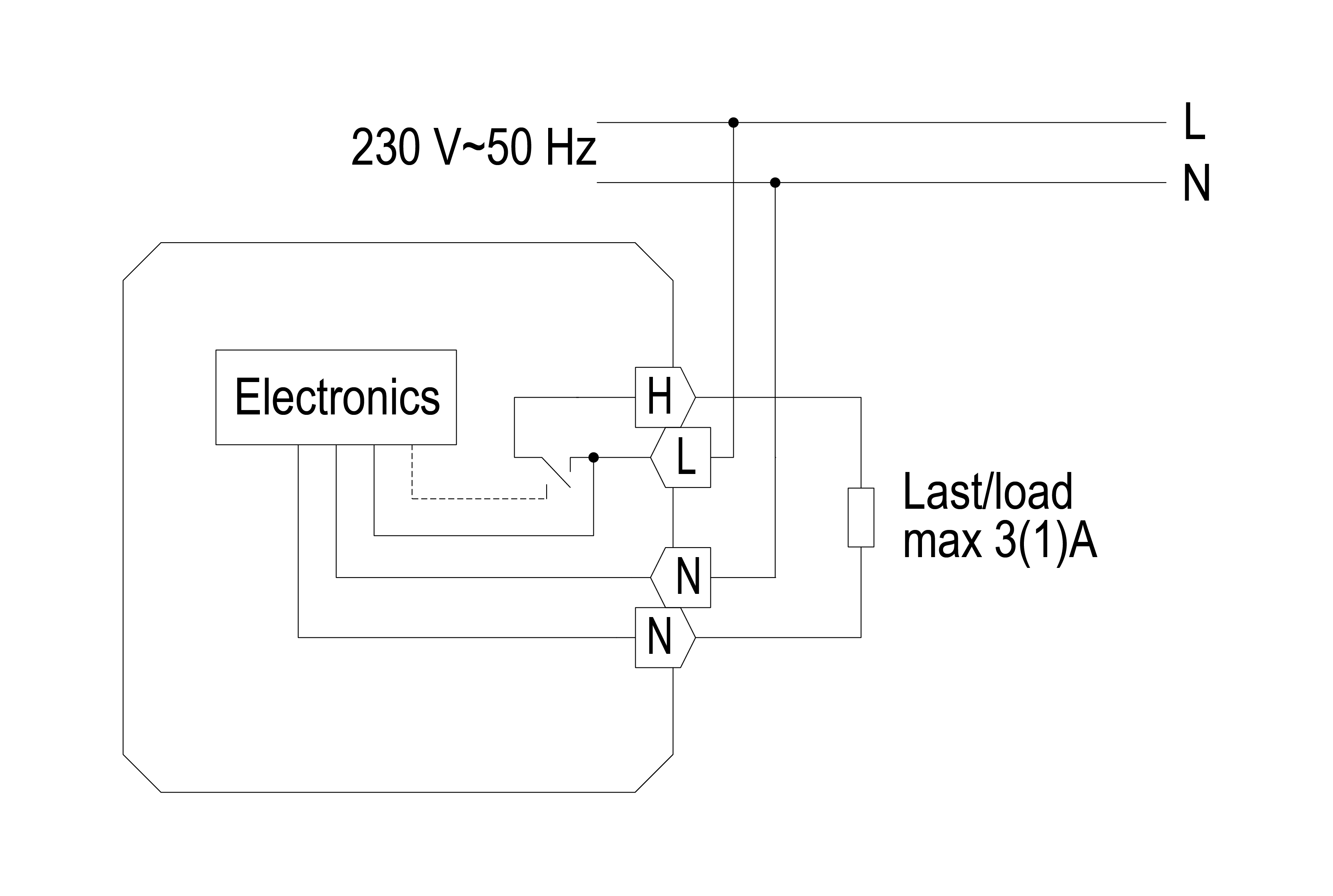

KTRRUs410.B86#55 — anschlussbild

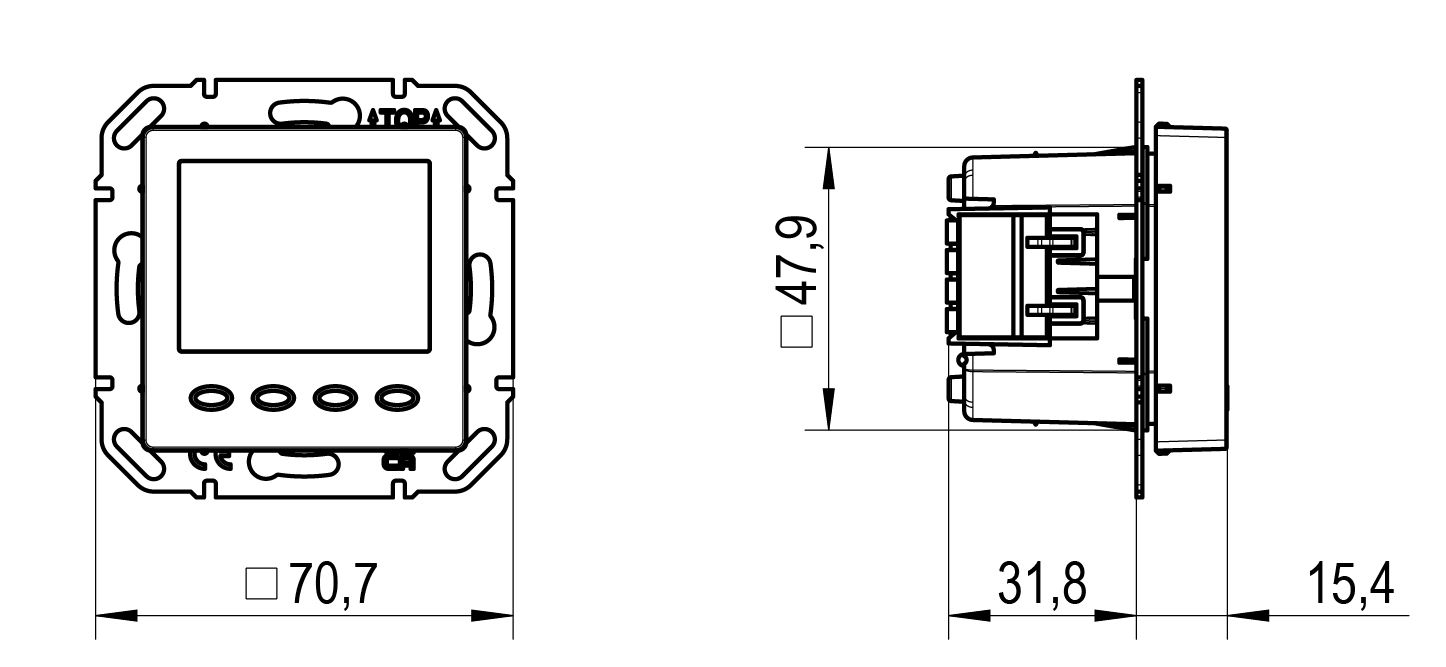

KTRRUs410.B86#55 — masszeichnung
Click to enlarge

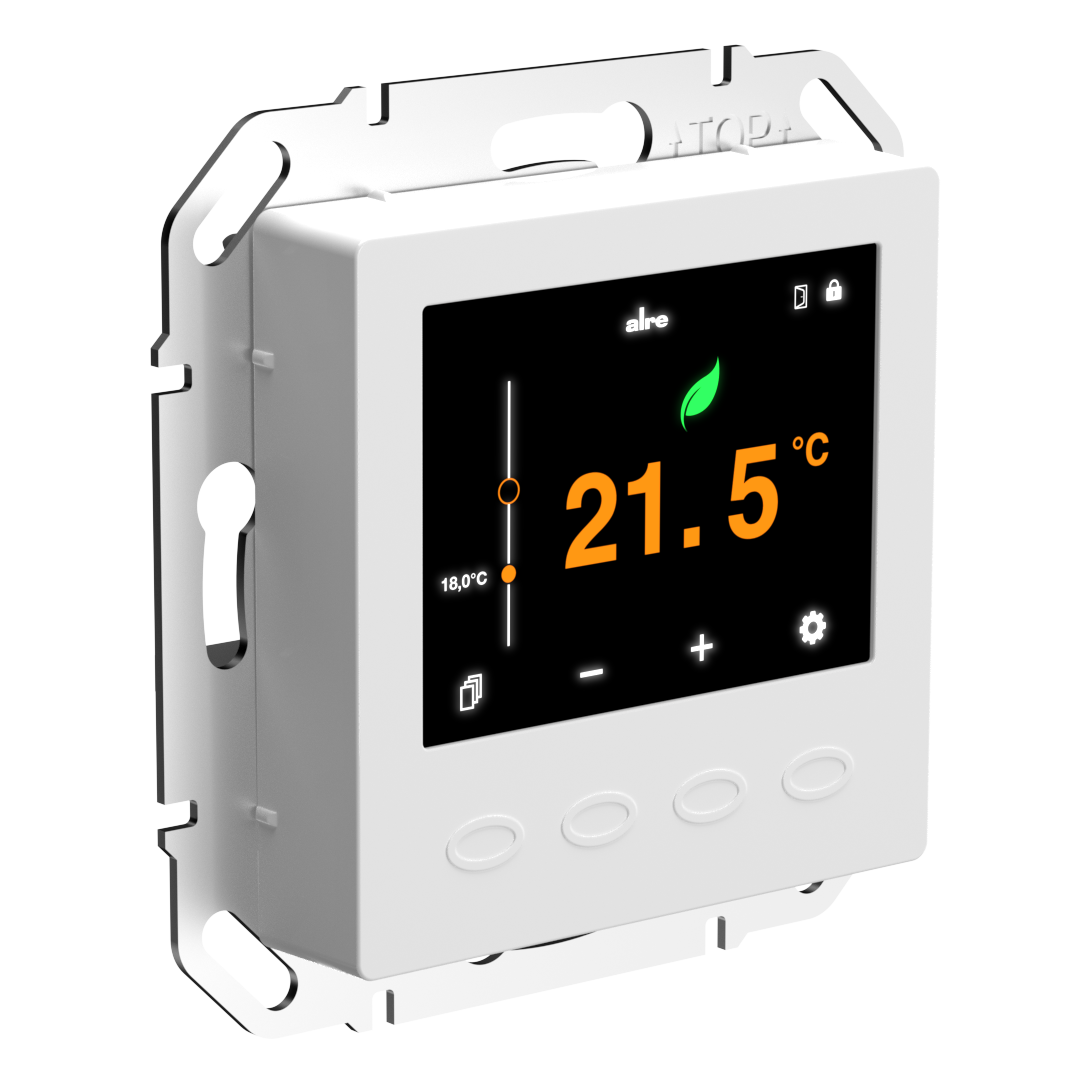

    KTRRUs410.B86#55 — produktbild
    KTRRUs410.B86#55 — gif_360
    KTRRUs410.B86#55 — milieubild
    KTRRUs410.B86#55 — anschlussbild
    KTRRUs410.B86#55 — masszeichnung
    Adaptive heating time startYes
    Connection cross-section0,2 – 2,5 mm²
    Number of outputs1, 1
    Number of outputs, heating1
    Number of outputs, cooling1
    Number of switching programs7
    Number of control ranges1
    Actual temperature displayYes
    Display typeTFT Farbdisplay
    Temperature controller versionroom thermostat
    Clock versiondigital
    Output signalswitching
    External settingYes
    Operationtouch-sensitive buttons
    Rated impulse voltage4000 V
    Operating voltage230 VAC, 50/60 Hz, 230 VAC, 50/60 Hz
    Design
    DisplayYes
    Average power consumption0.5 W
    Electric connectionPush-in clamp
    Electronic controlYes
    Energy efficiency classIV
    Colourpure white
    RAL colour number (similar)9010
    Sensor element
    Radio frequency2.4 GHz
    Power reserve1 Days
    Internal settingNo
    Shortest switching time5 min
    Bearing temperature–20 … 70 °C
    Power consumption in standby state0.5 W
    Max. air humidity (non-condensing)95 % r.H.
    Housing materialplastic PC
    Max. power consumptionapprox, 0,5 W
    Max. switching voltage230 VAC, 50/60 Hz
    Max. switching current3 (1) A
    MediumAir
    Min. switching voltage230 VAC, 50/60 Hz
    With displayYes
    Mounting/attachmentflush mounting (deep socket recommended)
    Surface protectionuntreated
    Test mark approvalCE, Matter, Built on Thread
    Control range5 … 40 °C, 5 … 40 °C
    Heating control function
    Cooling control function
    Control behaviourPI PWM
    Switching differential0,5
    Switching difference, can be adjustedNo
    Switching contactnormally open contact
    Potential free switching contactNo
    Protection classIP30
    Protection classII, following appropriate mounting
    Sensor externalNo
    Safety and EMCin accordance with DIN EN 60730
    ScaleDegree Celsius
    Clock typeday/week
    Ambient temperature0 … 40 °C
    Valve protection functionYes
    Assemblybasic device with cover
    Dimensions (W x H x D)71 mm x 71 mm x 50 mm
