Heating circuit manifold › Terminal strip for heating circuit distributor VOORL

Enjoy the perfect indoor climate and the highest level of comfort! Our climate control units maintain the perfect balance between humidity and temperature, whether to protect investments, equipment and valuables, or simply to ensure you feel comfortable in the room. Adjustable daily programmes with display controls ensure sustainability and energy efficiency when heating – an issue that is becoming increasingly important in the face of impending climate change.

Filter products
Active filters

VOORL-215.009

Connection cross-section:0,2 – 1,5 mm² (rigid) / 0,25 – 0,75 mm² (flex)
Number of outputs:5, 5
Number of channels/zone:5
Operating voltage:230 VAC, 50 Hz, 230 VAC, 50/60 Hz
Electric connection:spring push-lock terminals
DatasheetView product

VOORL-215.053

Connection cross-section:0,2 – 1,5 mm² (rigid) / 0,25 – 0,75 mm² (flex)
Number of outputs:6, 6
Number of channels/zone:5
Operating voltage:230 VAC, 50 Hz, 230 VAC, 50/60 Hz
Electric connection:spring push-lock terminals
DatasheetView product

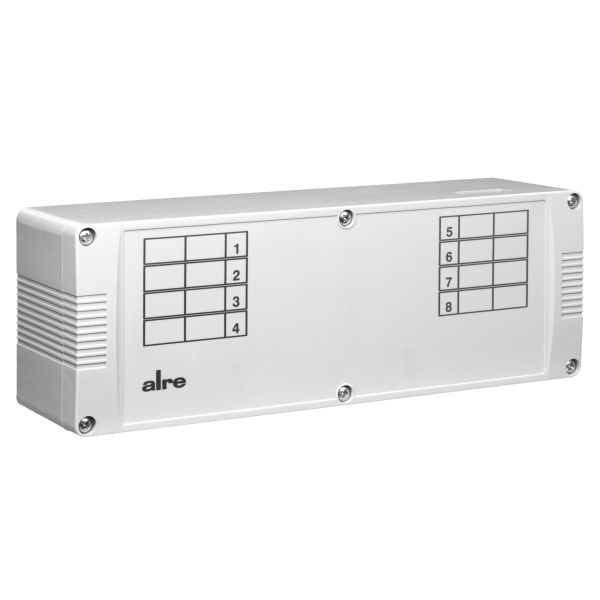

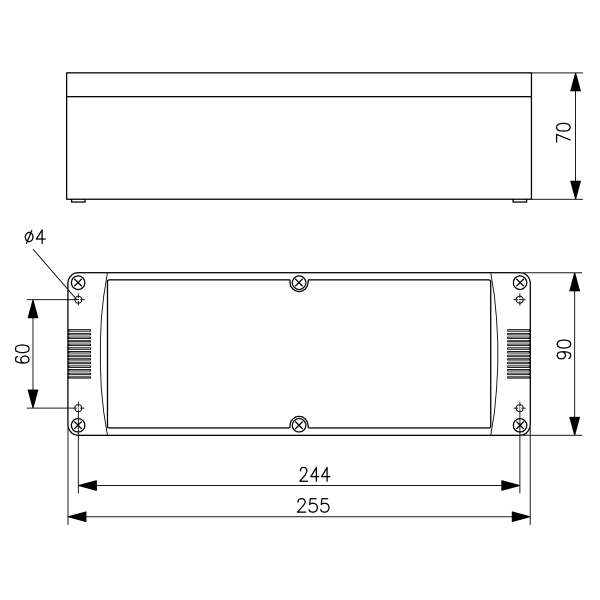

VOORL-318.009

Connection cross-section:0,2 – 1,5 mm² (rigid) / 0,25 – 0,75 mm² (flex)
Number of outputs:8, 8
Number of channels/zone:8
Operating voltage:230 VAC, 50 Hz, 230 VAC, 50/60 Hz
Electric connection:spring push-lock terminals
DatasheetView product

VOORL-318.053

Connection cross-section:0,2 – 1,5 mm² (rigid) / 0,25 – 0,75 mm² (flex)
Number of outputs:9, 9
Number of channels/zone:8
Operating voltage:230 VAC, 50 Hz, 230 VAC, 50/60 Hz
Electric connection:spring push-lock terminals
DatasheetView product
