RTERU-010.715#00

Floor temperature controller with remote sensor, flush-mounted, 10…50 °C

This electronic two-point controller has been specially developed for controlling electric or hot water heating systems/additional heating systems for floors and other surface temperature control systems. Remote sensor HF-8/4-K2 (4 m) included in the scope of delivery. The heating is switched off in the event of a sensor break or short circuit. The temperature reduction input can be used to set the temperature to approx. 5 K lower (night reduction). In combination with the corresponding cover set JZ-035.xxx, suitable for all standard switch ranges.


Installations-Tutorial

SKU: UN110100 Categories: , ,
Add to wishlist
Compare

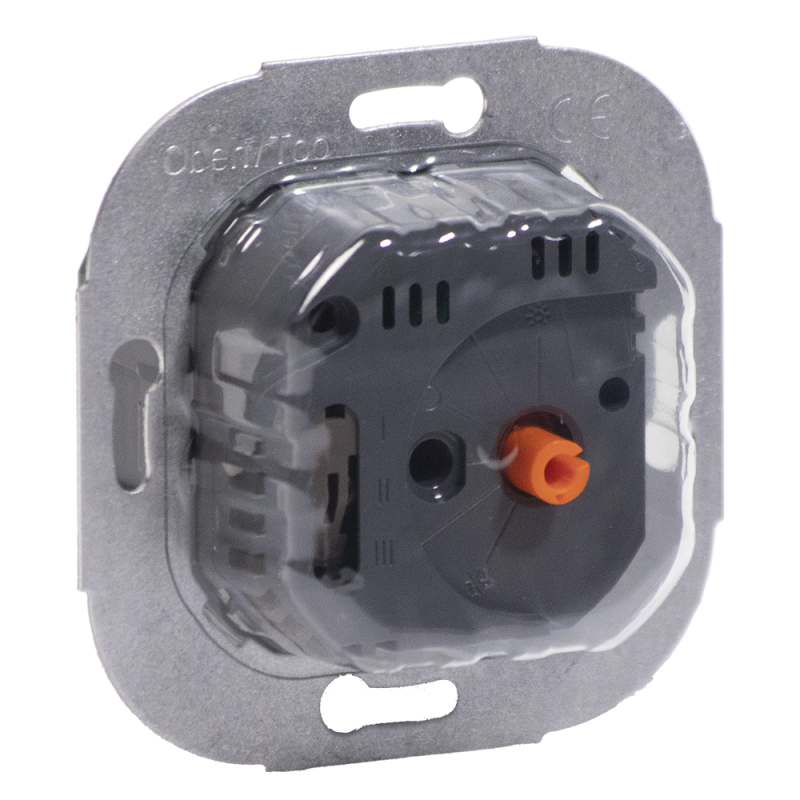

RTERU-010.715#00 — produktbild
RTERU-010.715#00 — milieubild
RTERU-010.715#00 — produktbild_rueckseite
RTERU-010.715#00 — anschlussbild
RTERU-010.715#00 — masszeichnung
Click to enlarge
    RTERU-010.715#00 — produktbild
    RTERU-010.715#00 — milieubild
    RTERU-010.715#00 — produktbild_rueckseite
    RTERU-010.715#00 — anschlussbild
    RTERU-010.715#00 — masszeichnung
    Number of outputs1, 1
    Number of outputs, heating1
    Number of control ranges1
    Temperature controller versionunderfloor temperature controller
    Output signalswitching
    External settingYes
    Operationrotary knob and switches
    Operating voltage230 VAC, 50 Hz, 230 VAC, 50/60 Hz
    Design
    ECO input (reduction)230 VAC, 50 Hz
    ECO function (reduction)Yes
    Electric connectionscrewed plug-in terminals
    Electronic controlYes
    Energy efficiency classI
    Colouranthracite
    Sensor elementNTC external
    Internal settingNo
    Bearing temperature–20 … 70 °C
    Max. air humidity (non-condensing)95 % r.H.
    Housing materialplastic PA6
    Max. switching voltage230 VAC, 50 Hz
    Max. switching current10 (1) A
    Mechanical range reductionYes
    MediumAir
    Min. switching voltage230 VAC, 50 Hz
    Mounting/attachmentflush mounting (deep socket recommended)
    Control range10 … 50 °C, 10 … 50 °C
    Heating control function
    Cooling control function
    Control behaviour2-point
    Switching differential1,5 K
    Switching difference, can be adjustedNo
    On/Off switchYes
    Switching contactnormally open contact
    Potential free switching contactNo
    Switching power2300 W
    Protection classIP30
    Protection classII, following appropriate mounting
    Sensor externalYes
    Safety and EMCin accordance with DIN EN 60730
    ScaleIndex number scale *…6
    Ambient temperature0 … 35 °C
    Assemblybasic device
    Dimensions (W x H x D)71 mm x 71 mm x 46,3 mm
