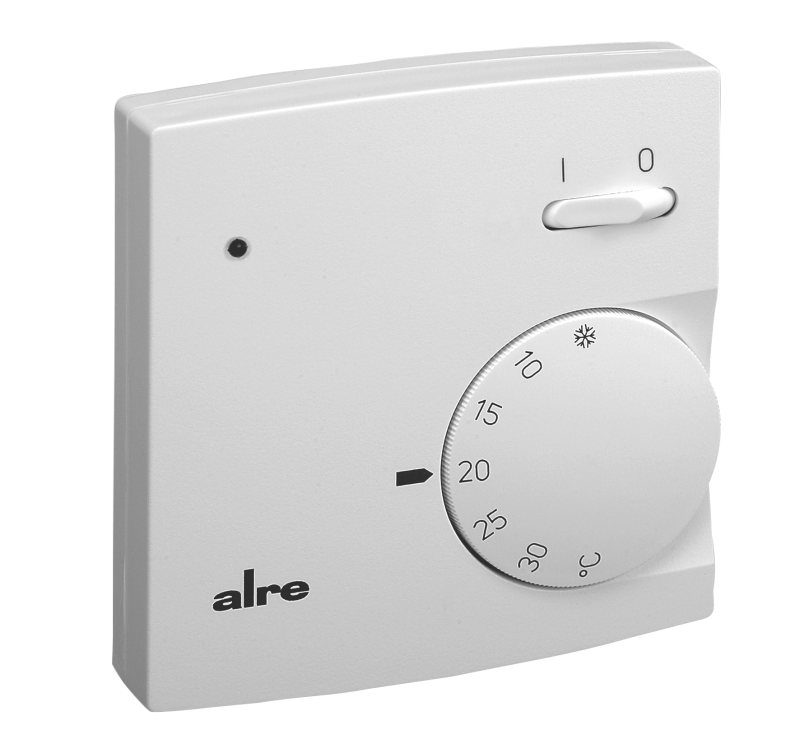

RTBSB-001.062
Room thermostat, surface-mounted, 5…30 °C, 230 VAC, NC contact, ECO function, heating display, ON/OFF switch
Electromechanical room thermostat in surface-mounted housing for controlling or monitoring temperatures in offices, living rooms and hotels. Suitable for all types of heating. A very precise switching differential is achieved through thermal feedback. The setting range can be changed using the range restriction located under the setting knob. The device has an ON/OFF switch and a heating indicator. When the ECO terminal is connected to 230 VAC (e.g. with a clock controller or time switch), the temperature is regulated to approx. 4 K lower.
| Connection cross-section | 0,12 – 2,5 mm² |
|---|---|
| Number of outputs | 1, 1 |
| Number of outputs, heating | 1 |
| Number of control ranges | 1 |
| Heating display | Yes |
| Output signal | switching |
| External setting | Yes |
| Operation | rotary knob and switches |
| Operating voltage | 230 VAC, 50 Hz, 230 VAC, 50/60 Hz |
| Design | Berlin 2000 |
| ECO input (reduction) | 230 VAC, 50 Hz |
| ECO function (reduction) | Yes |
| Electric connection | screw terminals |
| Energy efficiency class | I |
| Colour | pure white |
| RAL colour number (similar) | 9010 |
| Sensor element | bimetal |
| Internal setting | No |
| Bearing temperature | –20 … 70 °C |
| Max. air humidity (non-condensing) | 95 % r.H. |
| Housing material | plastic ABS |
| Max. power consumption | < 0,5 W |
| Max. switching voltage | 230 VAC, 50 Hz |
| Max. switching current | 10 (4) A |
| Mechanical range reduction | Yes |
| Medium | Air |
| Min. switching voltage | 230 VAC, 50 Hz |
| Mounting/attachment | surface mounting |
| Test mark approval | CE |
| Control range | 5 … 30 °C |
| Heating control function | |
| Cooling control function | |
| Control behaviour | 2-point |
| Switching differential | 0,5 K (delta T max. 4 K/h) |
| On/Off switch | Yes |
| Heating/cooling switch | No |
| Switching contact | NC contact |
| Potential free switching contact | No |
| Switching power | 2300 W |
| Protection class | IP30 |
| Protection class | II, following appropriate mounting |
| Safety and EMC | in accordance with DIN EN 60730 |
| Scale | Degree Celsius |
| Thermal feedback | Yes |
| Ambient temperature | 0 … 30 °C |
| Assembly | complete device |
| Dimensions (W x H x D) | 78,3 mm x 83,4 mm x 25,5 mm |
