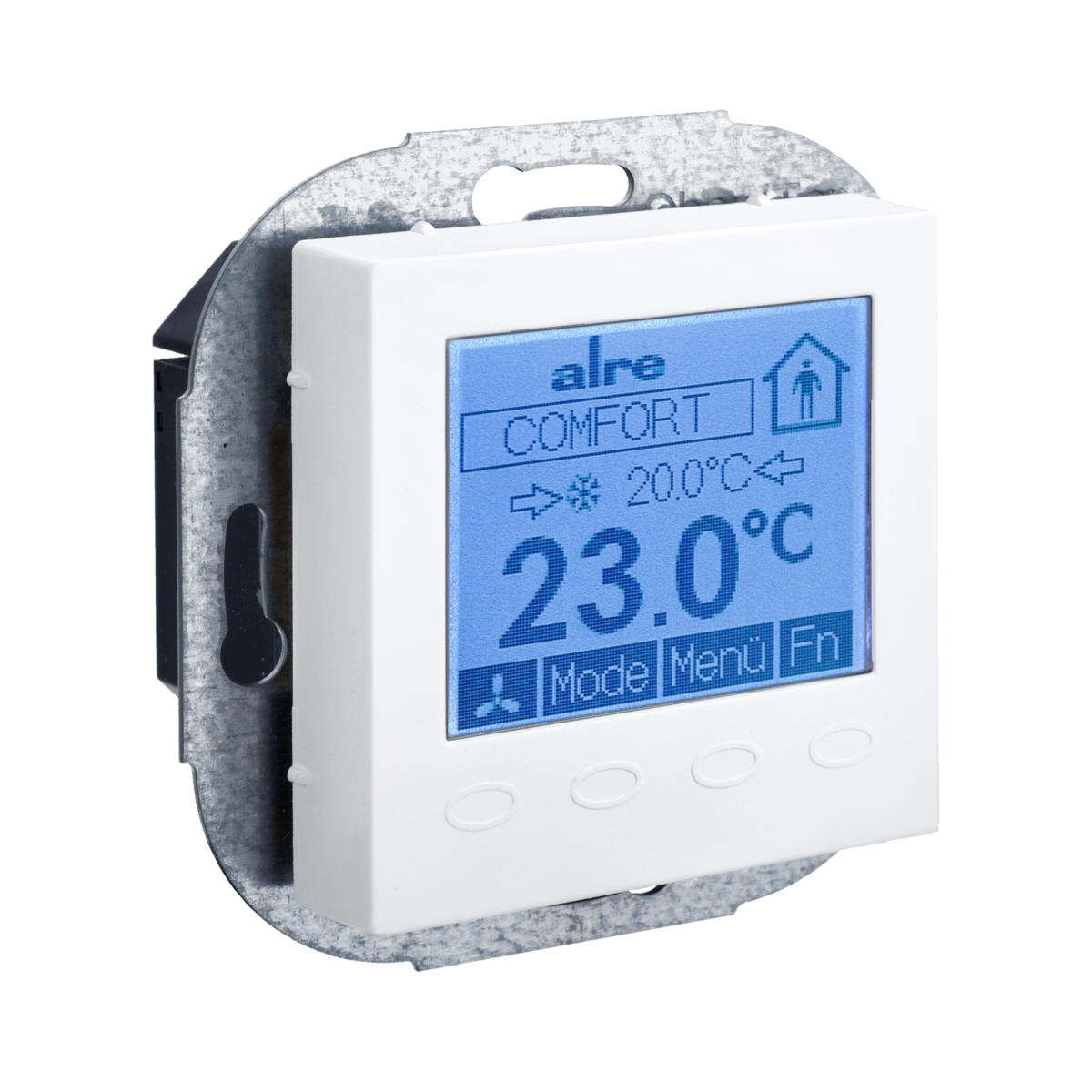

BACnet room controller flush-mounted, 230V AC, cover 55x55mm, pure white, matt
Product inquiry
Art.-Nr.: UA230009
Technical data
| connection cross-section | 0,75-2,5mm² (Netz), 0,08–1,5mm² |
| number of outputs | 3 |
| number of control ranges | 2 |
| display type | illuminated, graphic display |
| output signal | switching (230 V AC, 50 Hz), 0-10 V |
| operation | touch-sensitive buttons |
| operating voltage | 230 V AC / 50 Hz |
| other bus systems | BACnet |
| design | Berlin UP |
| electric connection | screwed plug-in terminals |
| colour | reinweiß |
| RAL colour number (similar) | 9010 |
| sensor element | NTC internal, optional NTC external |
| bearing temperature, upper value | 70°C |
| bearing temperature, lower value | -20°C |
| maximum air humidity (non-condensing) | 95% r.H |
| Manual setpoint adjustment | Yes |
| housing material | plastic ABS, PC, PMMA |
| maximum switching voltage | 230 V AC, 50 Hz |
| maximum switching current | 3 (0.5) A |
| medium | air, not aggressive |
| minimum switching voltage | 230 V AC / 50 Hz |
| with bus connection | Yes |
| with protection against theft/dismantling | No |
| with display | Yes |
| with LED display | No |
| with on-site operation | Yes |
| mounting / attachment | flush mounting (deep socket recommended) |
| surface properties | matt |
| surface protection | untreated |
| parallel operation possible | Yes |
| control range, upper value | 40°C |
| control range, lower value | 5°C |
| heating control function | Yes |
| cooling control function | Yes |
| switching difference | < 1 K |
| switching element | 2 relays |
| switching contact | 2 normally open contacts |
| potential free switching contact | No |
| switching power | 690 W |
| type of protection | IP30 |
| protection class | II, following appropriate mounting |
| Safety and EMC | in accordance with DIN EN 60730 |
| ambient temperature, upper value | 40°C |
| ambient temperature, lower value | 0°C |
| degree of contamination | 2 |
| material quality | Thermoplast |
| assembly | basic device with cover |
| Circuit diagram | |
| Photo | Type | Articlenumber | Features | Kind |
|---|---|---|---|---|
 | AF-2 | G9040380 | External temperature sensor, NTC47K | Accessories |
 | ZBOOA-010.100 | H9100010 | Heating valve actuator, 230V AC, closed when de-energised | Accessories |
 | BTF2-C47-0000 | SA140014 | Room temperature sensor, NTC47K, surface-mounted super flat | Accessories |
 | TPS 1 | G8000299 | Dew point sensor for cooling ceilings/mats, 10m cable | Accessories |
 | TPS 3 | SN120000 | dew point sensor for piping, 10m cable | Accessories |
| TPS 2 | G8000300 | Dew point sensor for cooling ceilings/tube, 10m cable | Accessories |
 | FUFC 47-0000 | SN090198 | Room temperature sensor, NTC47K, flush-mounted, cover 50x50mm, pure white gloss | Accessories |
 | KF-2 | G9031446 | Cable temperature sensor, NTC47K, 1.5m, PE sensor cable, -35...+100...°C | Accessories |
