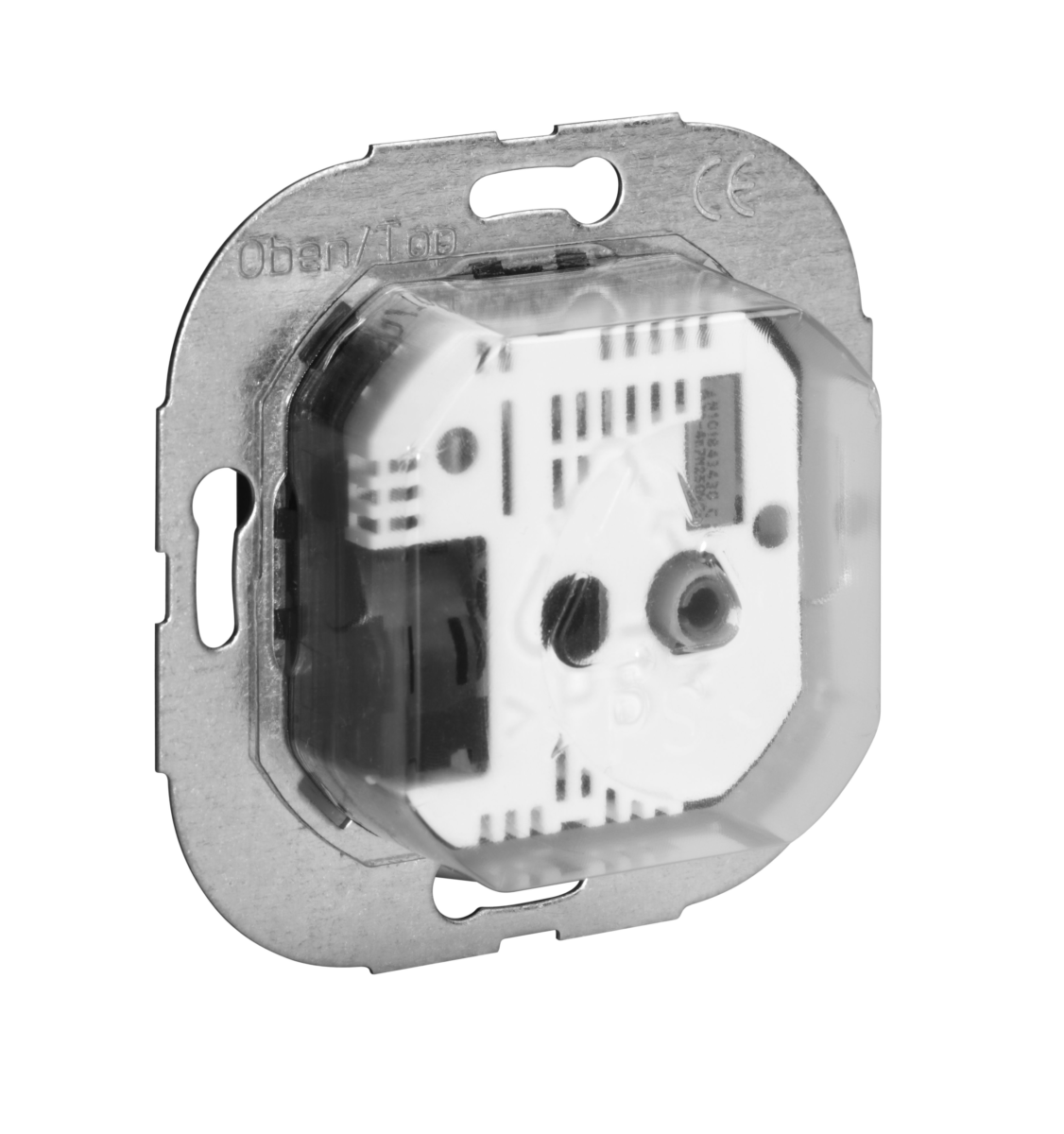

Room thermostat, flush-mounted, 230V AC, NC contact, reduction display, reduction/heating/reduction switch via external timer, night-time reduction
Electro-mechanical flush-mounted room thermostat for controlling and monitoring of temperatures in offices, residential properties and hotels. In combination with the corresponding cover set, works with all common switch ranges. Compatible cover set no. JZ-038.xxx. Suitable for all types of heating. Thermal feedback is used to obtain a very accurate switching difference. The setting range can be adjusted using the range reducer located under the adjustment knob. The device has a reduction/heating/reduction switch via external timer and a reduction display. Connecting the ECO terminal with 230 V AC (e.g. using clock controller or time switch clock) leads to an approx. 4K lower adjusted temperature. VDE tested. Simple electric connection without screws. New terminals for quick and easy installation. Simplified wiring thanks to colour-coded terminals. The modular principle saves time: Controller, frame and cover are mounted in a practical order. Small installation volume for quick and easy mounting in flush-mounted socket. Temperature control possible even without cover. Closed design. Optimum screw seat. The colour of the lower part is anthracite and the colour of the upper part corresponds to the selected cover set.
Art.-Nr.: UA090008
Technical data
| Actual temperature display | No |
| Additional heating display | No |
| Additional heating switch | No |
| Ambient temperature, lower value | 0 °C |
| Ambient temperature, upper value | 30 °C |
| Assembly | Basic device |
| Bearing temperature, lower value | -20 °C |
| Bearing temperature, upper value | 70 °C |
| Colour | Top part as cover set, UT anthracite |
| Connection cross-section | 1,0-2,5mm² (rigid), 0,75–1,5mm² (flex.) |
| Control behaviour | 2-point |
| Control range, lower value | 5 °C |
| Control range, upper value | 30 °C |
| Cooling control function | No |
| Depth | 41,8 mm |
| Design | Berlin UP |
| Display | No |
| ECO display | Yes |
| ECO function (reduction) | Yes |
| ECO input (reduction) | 230 V AC, 50 Hz |
| ECO temperature reduction | Approx. 4 K |
| Electric connection | Spring push-lock terminals |
| Electronic control | No |
| Energy efficiency class | I |
| External setting | Yes |
| Heating / cooling switch | No |
| Heating / off / cooling switch | No |
| Heating control function | Yes |
| Heating display | No |
| Height | 71 mm |
| Housing material | Plastic PA6 |
| Internal setting | No |
| Maximum air humidity (non-condensing) | 95 % r.H |
| Maximum power consumption | < 0.5W |
| Maximum switching current | 10 (4) A |
| Maximum switching voltage | 230 V AC, 50 Hz |
| Mechanical range reduction | Yes |
| Medium | Air, not aggressive |
| Minimum switching voltage | 230 V AC / 50 Hz |
| Mounting / attachment | Flush mounting (deep socket recommended) |
| NEMA type of protection | Other |
| Number of control ranges | 1 |
| Number of outputs | 1 |
| Number of outputs, heating | 1 |
| On / Off switch | No |
| Operating voltage | 230 V AC / 50 Hz |
| Operation | Rotary knob and switches |
| Output signal | Switching (230 V AC, 50 Hz) |
| Potential free switching contact | No |
| Protection class | II, following appropriate mounting |
| Protective cap | Yes |
| Reduction / heating / external reduction switch | Yes |
| Reduction switch | No |
| Safety and EMC | In accordance with DIN EN 60730 |
| Scale | Index number scale |
| Sensor element | Bimetal |
| Sensor external | No |
| Surface properties | Matt or gloss (see cover set) |
| Switching contact | NC contact |
| Switching difference | Approx. 0.5 K (delta T max. 4 K/h) |
| Switching difference, can be adjusted | No |
| Switching element | Bimetal contact |
| Switching power | 2300 W |
| Temperature controller version | Room thermostat |
| Test mark approval | CE, VDE |
| Thermal feedback | Yes |
| Type of protection | IP30 |
| Type of wiring | Three-/four-wire |
| Width | 71 mm |
| With explosion protection | No |
| Circuit diagram | |
