RTBSB-001.065

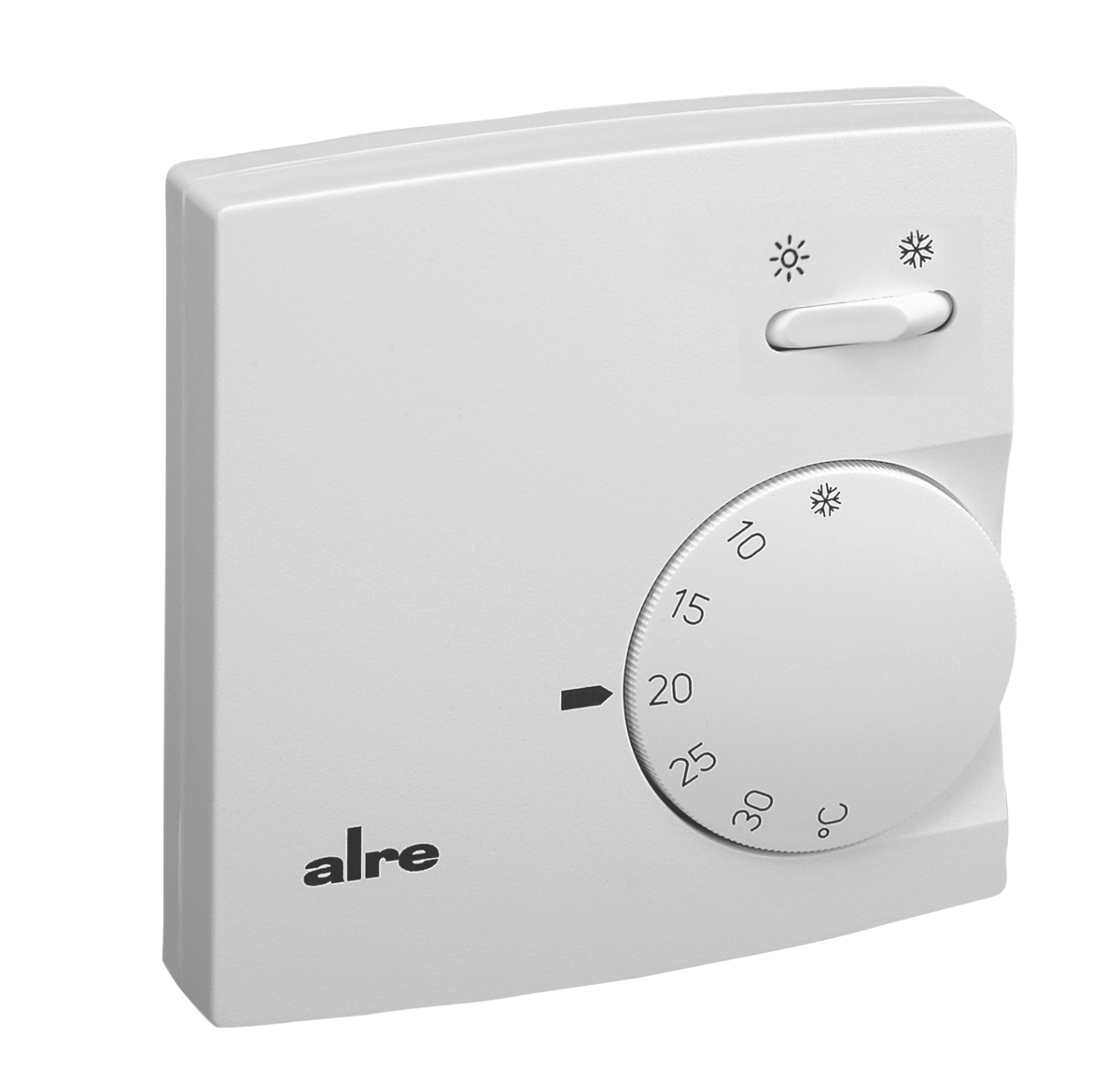

Room thermostat, surface-mounted, 5…30…°C, 230V AC, two-way contact, heating/cooling switch
Electro-mechanical room thermostat in surface-mounted housing for controlling and monitoring temperatures in offices, residential properties and hotels. Especially for 2-pipe climate systems. Heating/cooling changeover is performed using the heating/cooling switch. Thermal feedback is used to obtain a very accurate switching difference. The setting range can be adjusted using the range reducer located under the adjustment knob.
Art.-Nr.: MA010600
Technical data
| Actual temperature display | No |
| Ambient temperature, lower value | 0 °C |
| Ambient temperature, upper value | 30 °C |
| Assembly | Complete device |
| Bearing temperature, lower value | -20 °C |
| Bearing temperature, upper value | 70 °C |
| Colour | Pure white |
| Connection cross-section | 0,12 mm² bis 2,5 mm² |
| Control behaviour | 2-point |
| Control range, lower value | 5 °C |
| Control range, upper value | 30 °C |
| Cooling control function | Yes |
| Depth | 25,5 mm |
| Design | Berlin 2000 |
| Display | No |
| ECO function (reduction) | No |
| Electric connection | Screw terminals |
| Electronic control | No |
| Energy efficiency class | I |
| External setting | Yes |
| Heating / cooling switch | Yes |
| Heating control function | Yes |
| Heating display | No |
| Height | 78,3 mm |
| Housing material | Plastic ABS |
| Internal setting | No |
| Maximum air humidity (non-condensing) | 95 % r.H |
| Maximum power consumption | < 0.5W |
| Maximum switching current | 5 (2) A |
| Maximum switching voltage | 230 V AC, 50 Hz |
| Mechanical range reduction | Yes |
| Medium | Air, not aggressive |
| Minimum switching voltage | 230 V AC / 50 Hz |
| Mounting / attachment | Surface mounting |
| Number of control ranges | 1 |
| Number of outputs | 1 |
| Number of outputs, cooling | 1 |
| Number of outputs, heating | 1 |
| On / Off switch | No |
| Operating voltage | 230 V AC / 50 Hz |
| Operation | Rotary knob and switches |
| Output signal | Switching (230 V AC, 50 Hz) |
| Potential free switching contact | No |
| Protection class | II, following appropriate mounting |
| RAL colour number (similar) | 9010 |
| Safety and EMC | In accordance with DIN EN 60730 |
| Scale | Degree Celsius |
| Sensor element | Bimetal |
| Sensor external | No |
| Surface properties | Matt |
| Switching contact | Two-way contact |
| Switching difference | Approx. 0.5 K (delta T max. 4 K/h) |
| Switching difference, can be adjusted | No |
| Switching element | Bimetal contact |
| Switching power | 1150 W |
| Temperature controller version | Room thermostat |
| Test mark approval | CE |
| Thermal feedback | Yes |
| Type of protection | IP30 |
| Width | 78,3 mm |
| With explosion protection | No |
| Circuit diagram | |
| Photo | Type | Articlenumber | Features | Kind |
|---|---|---|---|---|
 |
ZBOOA-010.100 | H9100010 | Heating valve actuator, 230V AC, closed when de-energised | Accessories |
 |
VOOPL-216.176 | DA480510 | Terminal strip, max. 6 room thermostats and 12 valve actuators, IP20 | Accessories |
 |
VOOPL-318.178 | DA480520 | Terminal strip, max. 8 room thermostats and 16 valve actuators, IP20 | Accessories |
 |
ZBOOA-010.185 | G8990010 | Valve actuator "Stella" 230V NC for the fully automatic hydraulic compensation | Accessories |
 |
ET-10 | MA990002 | Adjustment knob for devices in B2000 series, scale 1...6, pure white, gloss | Accessories |
