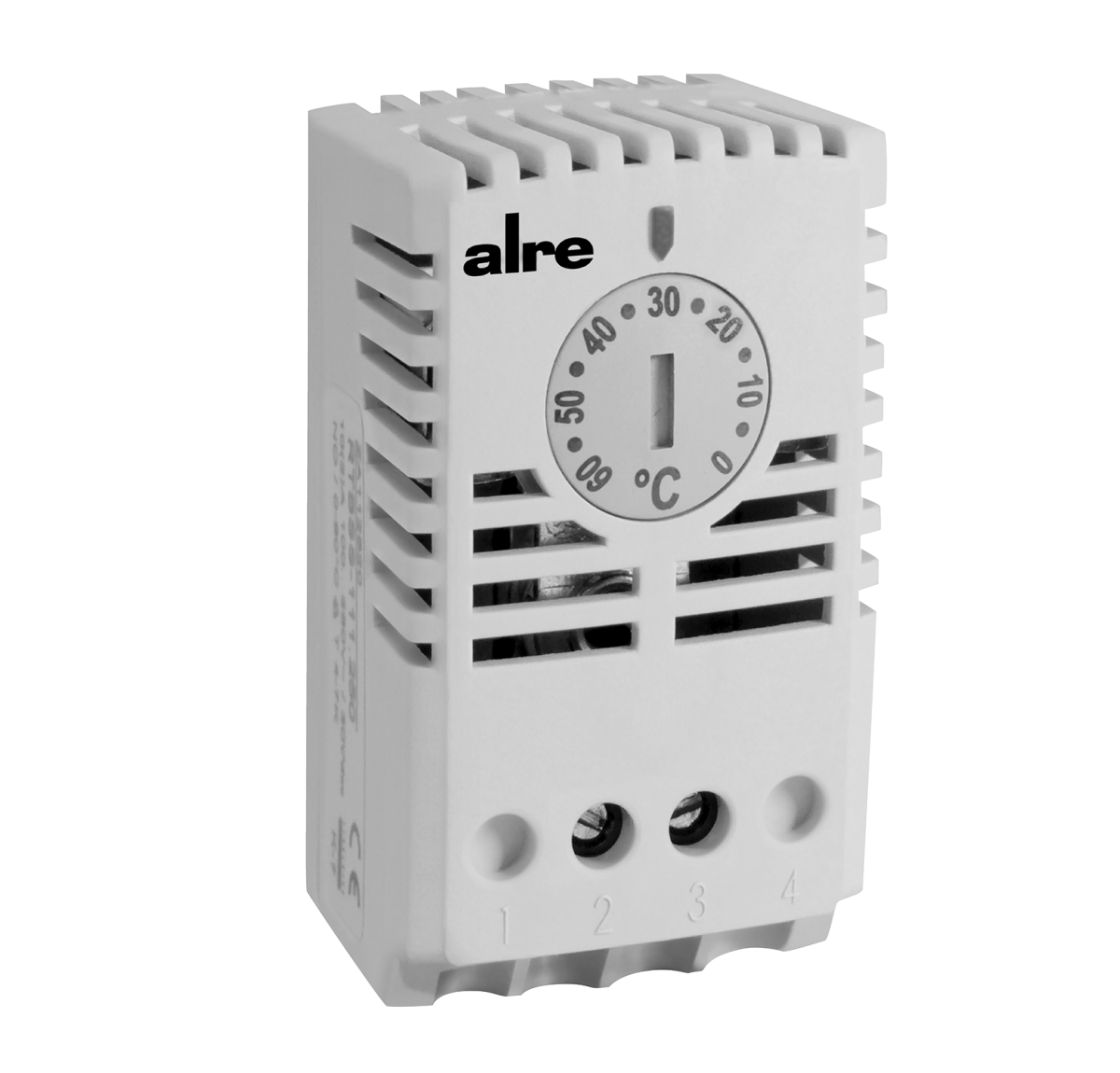

RTBSS-110.250/04
Control cabinet thermostat, 0…60°C, NC contact
Control cabinet temperature controller especially for monitoring and controlling the temperature in control cabinets, drinks or cash dispensers. UL and VDE test mark. The device does not require a supply voltage.
Art.-Nr.: ZN111524
Technical data
| Ambient temperature | 0 … 60 °C |
| Average power consumption | 0 W |
| Bearing temperature | –20 … 80 °C |
| Colour | grey |
| Connection cross-section | 0,5 – 2,5 mm² |
| Control range | 0 … 60 °C |
| Cooling control function | No |
| Dimensions (W x H x D) | 37 mm x 64 mm x 46 mm |
| Electric connection | screw terminals |
| External setting | Yes |
| Heating control function | Yes |
| Housing material | plastic PA6 |
| Max. air humidity (non-condensing) | 95 % r.H. |
| Max. switching current | 10 (2) A (230 VAC), 1,25 A (24 VDC), 0,625 A (48 VDC) |
| Max. switching voltage | 230 VAC, 50 Hz / 48 VDC |
| Medium | Air |
| Min. switching voltage | 24 VAC, 50 Hz / 24 VDC |
| Montage/Befestigung | on supporting rails (35 mm), EN 60715 |
| Number of control ranges | 1 |
| Number of outputs | 1 |
| Operation | rotary knob |
| Protection class | 0, determined by the assembly location |
| RAL colour number (similar) | 7035 |
| Safety and EMC | in accordance with DIN EN 60730 |
| Scale | Degree Celsius |
| Sensor element | bimetal |
| Surface finish | matt |
| Switching contact | NC contact |
| Switching differential | 4 … 7 K |
| Switching element | bimetal contact |
| Switching power | 2300 W |
| Test mark approval | CE, UL, VDE |
