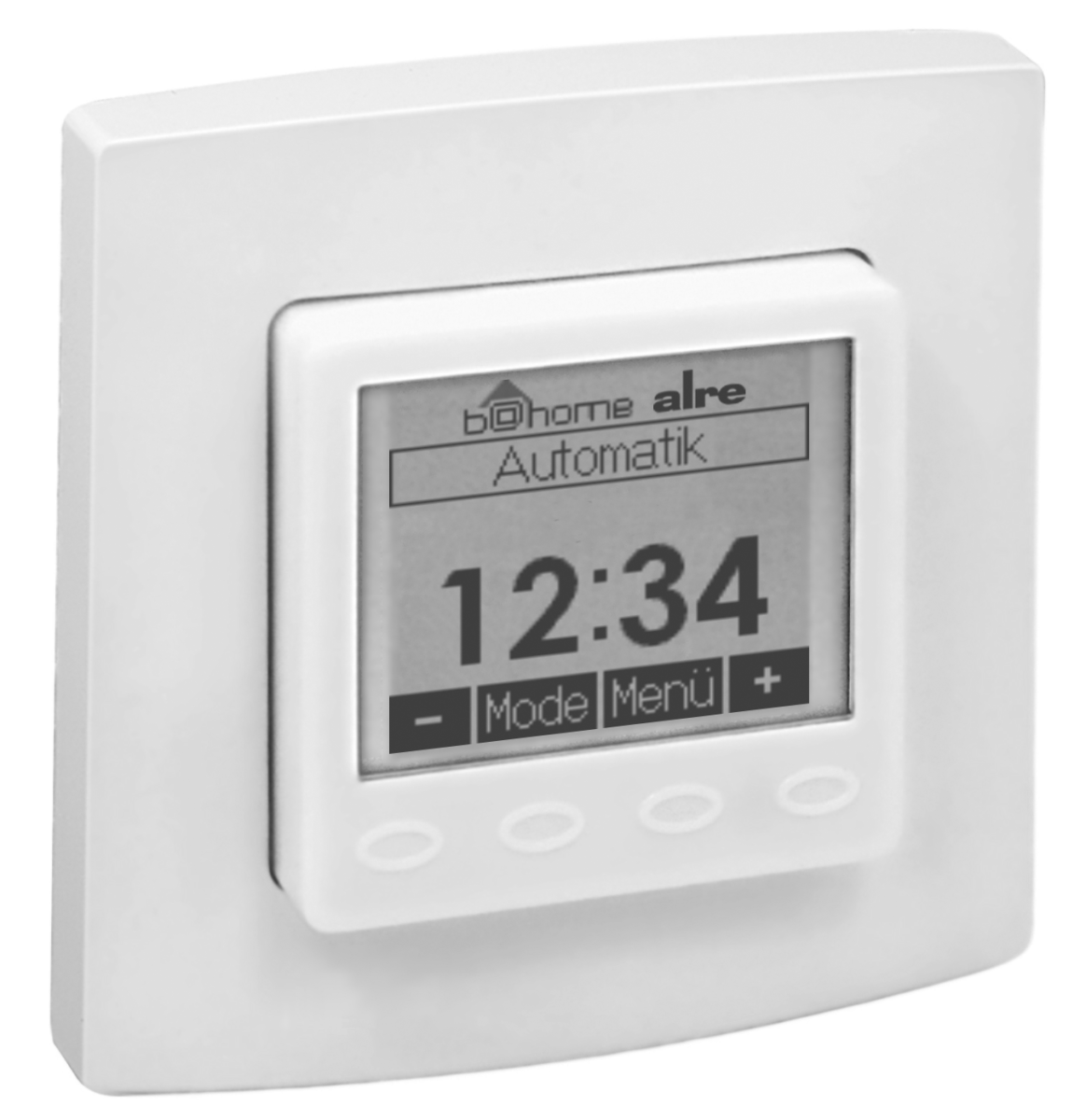

b@home control unit, flush-mounted, 230V AC, alre frame, cover 50x50mm, pure white, gloss


b@home control unit, flush-mounted, 230V AC, alre frame, cover 50x50mm, pure white, gloss

  • Art.-Nr.: UA070000

    Technical data

    Actual temperature displayYes
    Adaptive heating time startYes
    Ambient temperature, lower value0 °C
    Ambient temperature, upper value40 °C
    AssemblyComplete device
    Bearing temperature, lower value-20 °C
    Bearing temperature, upper value70 °C
    ColourPure white
    Control range, lower value5 °C
    Control range, upper value30 °C
    Cooling control functionYes
    DesignBerlin UP
    Display typeIlluminated, graphic display
    Electric connectionScrewed plug-in terminals
    External settingYes
    Heating control functionYes
    Housing materialPlastic ABS, PC, PMMA
    Manual setpoint adjustmentYes
    Material qualityThermoplast
    Maximum air humidity (non-condensing)95 % r.H
    MediumAir, not aggressive
    Mounting / attachmentFlush mounting (deep socket recommended)
    Operating voltage230 V AC / 50 Hz
    OperationTouch-sensitive buttons
    Power reserveApprox. 3 days
    Protection classII, following appropriate mounting
    Radio frequency868 MHz
    RAL colour number (similar)9010
    Range150m line of sight/up to 30m in buildings
    Safety and EMCIn accordance with DIN EN 60730
    Sensor elementNTC internal, optional NTC external
    Surface propertiesGloss
    Surface protectionUntreated
    Type of protectionIP30
    Wireless bidirectionalYes
    Wireless bus bus systemYes
    With bus connectionYes
    With displayYes
    With LED displayNo
    With on-site operationYes
    With protection against theft/dismantlingNo
    Circuit diagram Circuit diagram




    Assembly instructions


    BTF2-C47-0000SA140014Room temperature sensor, NTC47K, surface-mounted super flatAccessories
    FUFC 47-0000SN090198Room temperature sensor, NTC47K, flush-mounted, cover 50x50mm, pure white glossAccessories
    ALF-2G9050160Contact temperature sensor, NTC47KAccessories
    KF-2G9031446Cable temperature sensor, NTC47K, 1.5m, PE sensor cable, -35...+100...°CAccessories
